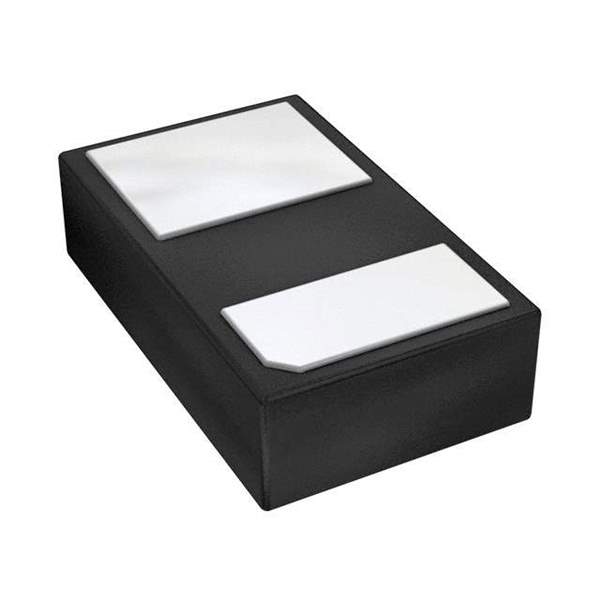

Product Overview: SDM1A40CSP-7 - Diodes Incorporated

The SDM1A40CSP-7 is a cutting-edge PowerDI®5 Rectifier from Diodes Incorporated, designed for high-efficiency power management applications. This product is a testament to Diodes Incorporated's commitment to providing innovative solutions that meet the evolving needs of the electronics industry.

Key Features

• Voltage Rating: The SDM1A40CSP-7 is a Schottky barrier rectifier with a maximum repetitive peak reverse voltage (VRRM) of 40V, making it suitable for low voltage, high-frequency inverters, free-wheeling, and polarity protection applications.
• Current Capacity: It has a forward continuous current (IF) rating of 1A, ensuring it can handle moderate current requirements in various electronic circuits.
• Low Forward Voltage Drop: The device features a low forward voltage drop, which enhances system efficiency by minimizing power loss during operation.
• Power Dissipation: With a power dissipation of 1.5W, the SDM1A40CSP-7 can withstand thermal challenges during high-power and high-temperature operations.
• Fast Switching Speed: The fast switching capability of this rectifier reduces losses during the transition periods of the electronic switches, thereby improving overall efficiency.
• Thermal Performance: The PowerDI®5 package is designed for optimal thermal performance, ensuring reliability and longevity even under strenuous conditions.

Applications

The SDM1A40CSP-7 is versatile and can be used in a wide range of applications, including:

• DC-DC converters
• LED lighting
• Portable devices
• Power supply modules
• Battery charging circuits
• Automotive applications

Quality and Reliability

Diodes Incorporated ensures that the SDM1A40CSP-7 meets the highest quality and reliability standards. The product is RoHS compliant and is manufactured in facilities that are certified to ISO 9001:2015 and IATF 16949:2016, reflecting the company's dedication to quality management and consistent product performance.

Environmental Compatibility

Committed to environmental sustainability, the SDM1A40CSP-7 adheres to green manufacturing processes and is compliant with RoHS directives, making it a suitable choice for eco-friendly and energy-conscious designs.
