The MAX483ESA+ is a low-power transceiver module designed by Maxim Integrated for RS-485 and RS-422 communication. This device is engineered to provide reliable data transmission over long distances and in electrically noisy environments, making it an ideal choice for industrial, network, and telecom applications.

With its slew-rate-limited feature, the MAX483ESA+ ensures reduced electromagnetic interference (EMI) and reflections, allowing for error-free communication at data rates up to 2.5Mbps. This makes it suitable for applications that require moderate speed over longer cable runs.

One of the key benefits of the MAX483ESA+ is its low-power operation. It operates from a single 5V supply, and its quiescent current is only 300µA, which increases to 1mA when loaded and enabled. This low power consumption makes it an excellent choice for energy-sensitive applications.

The MAX483ESA+ transceiver features a half-duplex communication capability, which means it can both transmit and receive data, but not simultaneously. This is particularly useful in systems where data flow is primarily unidirectional or where the use of full-duplex communication is not necessary or cost-effective.

The device is equipped with fail-safe circuitry, which ensures a logic-high receiver output when the receiver inputs are open or shorted. This feature provides additional reliability in the case of disconnected cables or fault conditions on the communication bus.

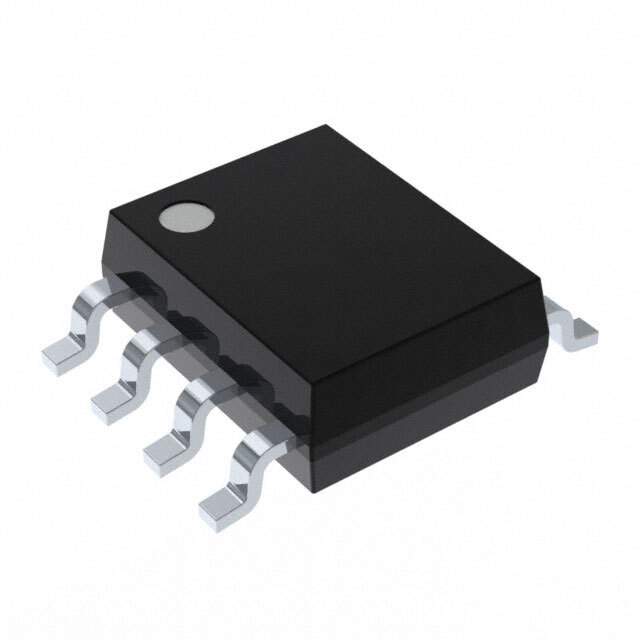

For enhanced versatility, the MAX483ESA+ offers an extended temperature range of -40°C to +85°C, making it suitable for use in harsh environments. The transceiver comes in an 8-pin NSOIC package, which is compact and suitable for space-constrained applications.

Overall, the MAX483ESA+ from Maxim Integrated is a robust, low-power RS-485/RS-422 transceiver that provides reliable data transmission and is designed to meet the needs of a wide range of communication applications.
