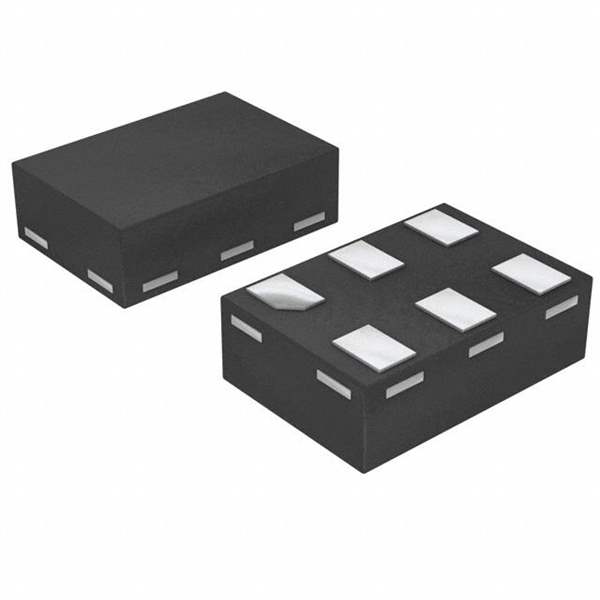

The PESD3V3L5UF,115 is an ultra-low capacitance Electrostatic Discharge (ESD) protection diode manufactured by Nexperia. It is designed to protect sensitive electronic components from ESD damage. This diode is commonly used in mobile phones, tablets, and other portable devices.

Applications:

• Mobile Phones
• Tablets
• Portable Devices
• USB Interfaces
• HDMI Interfaces

Features:

• Ultra-Low Capacitance
• ESD Protection
• Small SMD Package
• Fast Response Time
• Low Clamping Voltage
• RoHS Compliant

Benefits:

• Provides effective ESD protection without degrading signal integrity.
• Allows for high-speed data transmission due to its ultra-low capacitance.
• Enables compact designs due to its small SMD package.
• Reacts quickly to ESD events with its fast response time.
• Protects downstream components with its low clamping voltage.
• Meets environmental standards with its RoHS compliant construction.

Additional Details:

The PESD3V3L5UF,115 features an ultra-low capacitance, minimizing signal distortion in high-speed data transmission lines. Its small SMD package allows for efficient assembly on printed circuit boards (PCBs), optimizing space utilization. The diode's fast response time ensures quick protection against ESD events, safeguarding sensitive components. Its low clamping voltage limits the voltage overshoot, preventing damage to downstream circuitry.

This ESD protection diode is commonly used in mobile devices, consumer electronics, and communication equipment where ESD protection is critical. Nexperia's commitment to quality and innovation makes the PESD3V3L5UF,115 a trusted choice for designers and engineers seeking reliable ESD protection.
