2N7002,215

Teil Nr. 2N7002,215
Hersteller NXP
Katalog Transistors - FETs, MOSFETs - RF
Beschreibung MOSFET N-CH 60V 300MA SOT-23
Datenblatt
Muster
Rohs-status rohs
ECAD-module
Brauchen Sie Hilfe

Spezifikationen der Produkte Problem melden?

Kategorien Discrete Semiconductor Products
Hersteller Nexperia USA Inc.
Verpackung Reel - TR
Status Active
Polarität N-Channel
Technologie MOSFET
Drain-Source-Durchbruchsspannung 60V
Kontinuierlicher Drainstrom bei 25°C 300mA (Ta)
Antriebsspannung (Max Rds On, Min Rds On) 10V
Gate-Source Schwellenspannung 2.5V @ 250μA
Maximale Eingangskapazität 50pF @ 10V
Maximale Gate-Source-Spannung ±30V
Verlustleistung (Max) 830mW (Ta)
Maximale Rds Ein bei Id,Vgs 5 Ohm @ 500mA, 10V
Temperaturbereich - Betrieb -65°C to 150°C (TJ)
Montage SMD (SMT)

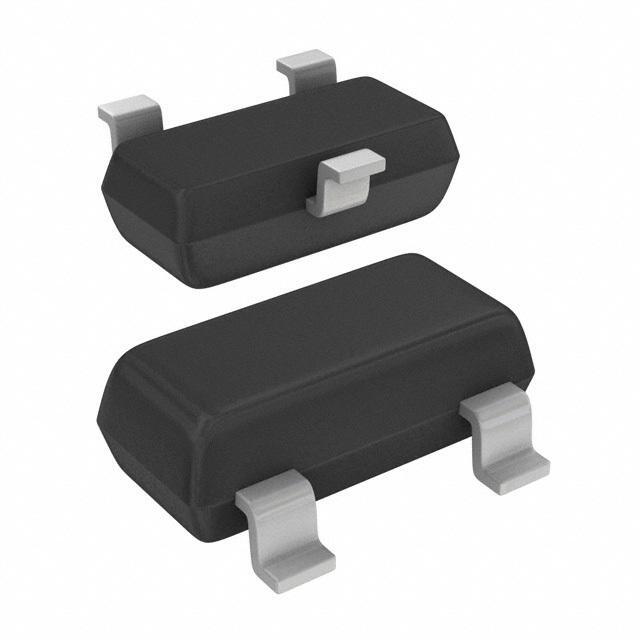

Koffer/Paket TO-236AB (SOT23)
Dimension TO-236-3, SC-59, SOT-23-3
Zustand der Lagerung Dry storage cabinet & Humidity protection package
Win Source Teilenummer 005716-2N7002,215
Popularität Medium
Gefälschte Bedrohung auf dem freien Markt 50 pct.
Stand von Angebot und Nachfrage Balance
Anwendungsbereich Used in Industrial
Ultra Librarian 3D-Modell Ultra Librarian 2N7002,215 CAD-Modell

Beschreibung

2N7002,215 from NXP / Nexperia is a widely recognized small-signal MOSFET used in compact switching, level shifting, signal routing, and general-purpose interface circuits. Although the provided category lists RF MOSFETs, engineers commonly evaluate this device for low-power electronic designs where board space, simple drive requirements, and broad ecosystem familiarity are important. It is often considered for consumer electronics, embedded control boards, power management support circuits, and industrial signal handling paths. From a sourcing perspective, this part is relevant for teams maintaining existing designs or qualifying alternates in cost-sensitive production. The current lifecycle status is information not available, so design and procurement teams should confirm manufacturer status before committing to new programs or long-term service builds. RoHS compliance information is also not available in the provided data and should be verified directly through the official datasheet, manufacturer compliance portal, or authorized distribution documentation before release to production.
