ON Semiconductor NCP339AFCT2G Load Switch

The ON Semiconductor NCP339AFCT2G is a high-performance, P-channel MOSFET load switch designed to enable power distribution and management in a wide range of electronic applications. This compact and efficient device is tailored for systems that require minimal power consumption and space-saving solutions.

With an input voltage range from 0.9V to 3.6V, the NCP339AFCT2G is particularly suited for portable and battery-powered devices where power efficiency is critical. This feature allows the load switch to operate effectively in low-voltage environments, such as those found in modern handheld devices, wearables, and IoT products.

The NCP339AFCT2G boasts an ultra-low on-resistance (R_ON) of just 28 mΩ at 1.2V, which translates to reduced conduction losses and improved overall system efficiency. This low R_ON ensures that the load switch can handle high current loads while minimizing the power dissipation and heat generation, thereby enhancing the reliability and lifespan of the end product.

Additionally, this load switch incorporates a slew rate-controlled turn-on feature, which is designed to prevent inrush current from causing undue stress on the power source or the load itself. This controlled turn-on helps to maintain system stability and prolong the life of the battery by avoiding sudden power spikes.

The NCP339AFCT2G also comes with built-in protection features, such as over-current protection, thermal shutdown, and under-voltage lockout (UVLO), further safeguarding the device and the system it is integrated into. These protective measures ensure that the load switch operates within safe parameters, thereby preventing potential damage from electrical mishaps.

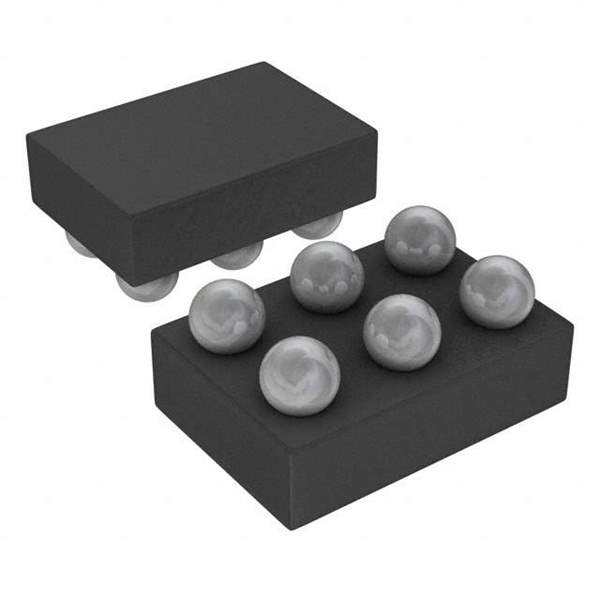

Housed in a small, lead-free, halogen-free, and RoHS-compliant 6-pin package (UDFN6 1.0x1.5, Case 517AQ), the NCP339AFCT2G is designed for space-constrained applications. Its compact form factor makes it an ideal choice for designers looking to maximize functionality in limited PCB real estate.

In summary, the ON Semiconductor NCP339AFCT2G load switch is a versatile and reliable component that provides efficient power management with advanced protection features, making it an excellent choice for a wide range of electronic devices.
