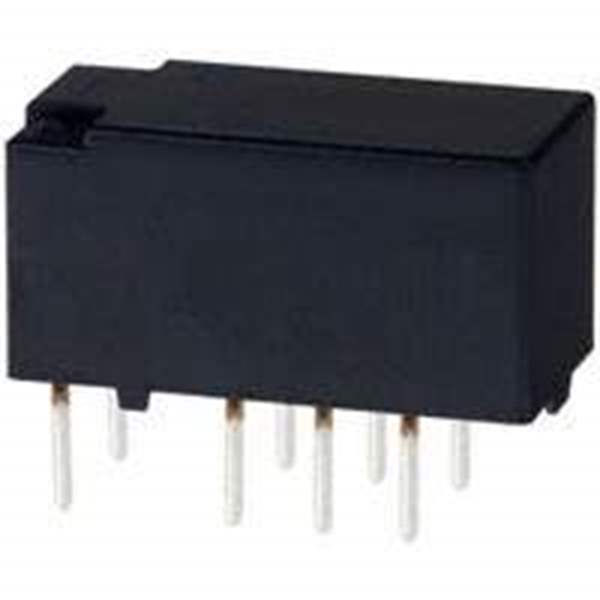

The TX2-12V is a compact and reliable signal relay manufactured by Panasonic. It's part of the TX series, known for its small size, high sensitivity, and high switching capacity. This relay is designed for a wide range of applications where space is a constraint and dependable switching performance is critical.

Applications

• Telecommunications equipment: Used in line cards and switching systems.
• Industrial control systems: Employed in programmable logic controllers (PLCs) and other automation equipment.
• Measurement and instrumentation: Utilized in test equipment and data acquisition systems.
• Medical equipment: Incorporated in diagnostic and monitoring devices.
• Consumer electronics: Found in audio/visual equipment and home appliances.

Features

• Compact size: Small footprint allows for high-density mounting.
• High sensitivity: Low coil power consumption for energy efficiency.
• High switching capacity: Capable of switching loads up to 2A at 30VDC.
• High isolation voltage: Provides electrical isolation between the coil and contacts.
• Sealed construction: Offers environmental protection against dust and moisture.

Benefits

• Space savings: Enables miniaturization of equipment.
• Energy efficient: Reduces power consumption and heat generation.
• Reliable switching: Ensures consistent and dependable performance.
• Electrical safety: Protects against voltage surges and electrical hazards.
• Long service life: Provides extended operational lifespan.

Additional Details

The TX2-12V relay features a DPDT (Double Pole Double Throw) contact configuration. It has a coil voltage of 12VDC and a coil resistance of typically around 720 ohms. The contact material is gold-clad silver alloy, which provides excellent contact reliability and low contact resistance. It is RoHS compliant. Its operating temperature range is typically -40°C to +85°C. The dielectric strength between coil and contacts is typically 2,000 VAC. This relay is designed for through-hole mounting.
