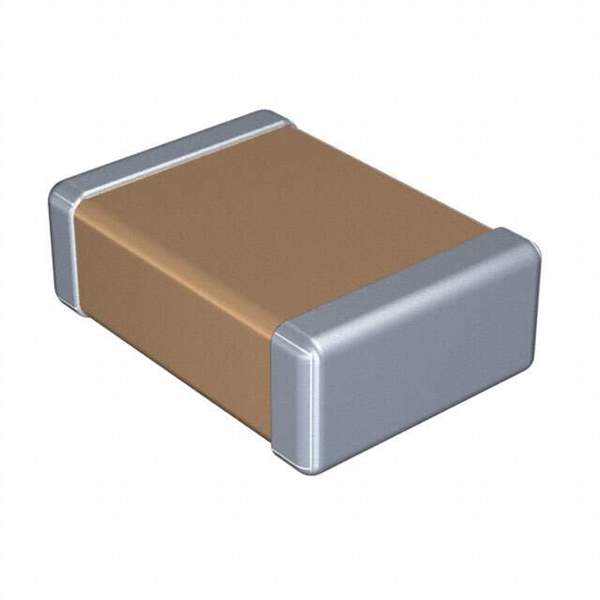

The C4532X7R1H685KT000N is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. This capacitor is designed for general-purpose applications, offering reliable performance in a variety of electronic circuits. It's characterized by its X7R dielectric, indicating a stable capacitance over a broad temperature range. Its compact size and excellent electrical characteristics make it suitable for demanding applications where space is limited and high performance is required.

Applications:

• Power supply circuits
• Consumer electronics
• Mobile devices
• Industrial equipment
• Smoothing circuits
• Bypass and decoupling applications

Features:

• High capacitance value: 6.8uF
• Voltage rating: 50V
• Temperature coefficient: X7R
• Case size: 1812 (4532 Metric)
• High reliability
• Lead-free and RoHS compliant

Benefits:

• Stable performance over a wide temperature range
• Effective noise suppression
• Long operational life
• Space-saving design due to its compact size
• Meets stringent environmental standards

Additional Details:

The C4532X7R1H685KT000N utilizes a ceramic dielectric material, which contributes to its high stability and reliability. The 'X7R' temperature coefficient indicates a specific capacitance change of ±15% over a temperature range of -55°C to +125°C. The 1812 case size provides a balance between capacitance value and physical dimensions. This capacitor is suitable for reflow soldering processes and is designed for automated assembly.

The 50V voltage rating makes it suitable for a wide range of low to medium voltage applications. Its robust construction ensures stable performance in demanding operating conditions. The C4532X7R1H685KT000N is widely used in a variety of electronic devices due to its combination of high performance, reliability, and compact size.
