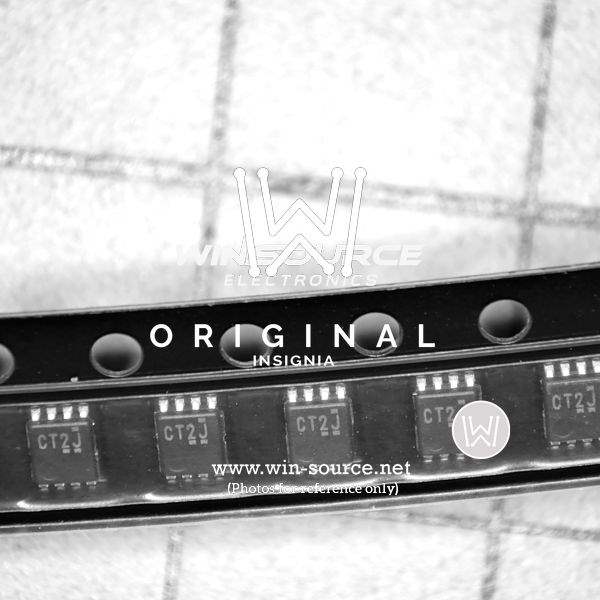

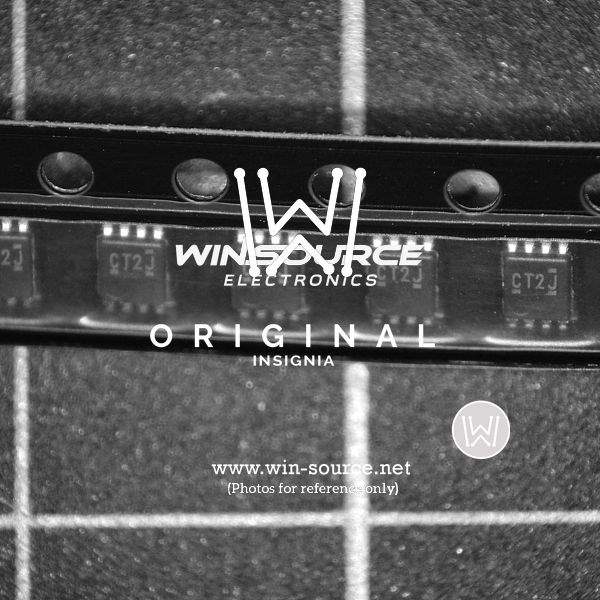

SN74LVC2T45DCUR

Teil Nr. SN74LVC2T45DCUR
Hersteller Texas Instruments
Katalog Logic - Translators, Level Shifters
Beschreibung IC BUS TRANSCVR 2B N-INV US8
Datenblatt
Muster
Rohs-status rohs
ECAD-module
Brauchen Sie Hilfe

Spezifikationen der Produkte Problem melden?

Kategorien Integrated Circuits
Hersteller Texas Instruments
Verpackung Reel - TR
Status Active
Übersetzer Typ Voltage Level
Kanal-Typ Bidirectional
Anzahl der Schaltkreise 1
Kanäle pro Kreislauf 2
Spannung - VCCA 1.65V to 5.5V
Spannung - VCCB 1.65V to 5.5V
Ausgangstyp Tri-State, Non-Inverted
Datenrate 420Mbps
Temperaturbereich - Betrieb -40°C to 85°C (TA)
Montage SMD (SMT)

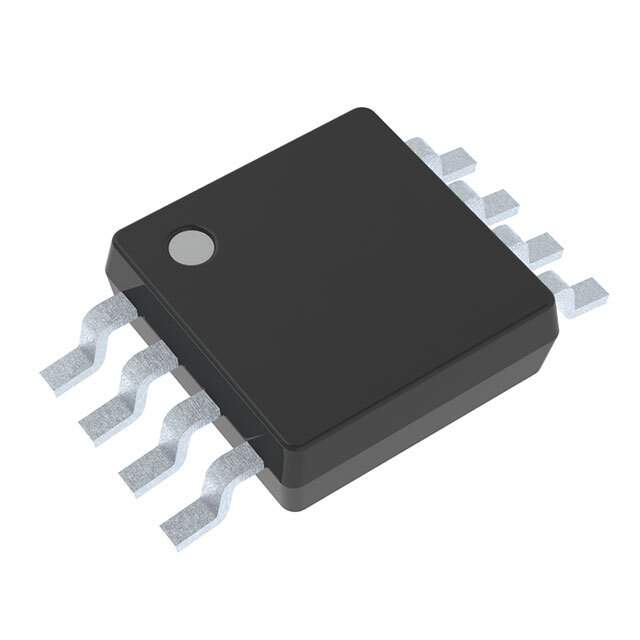

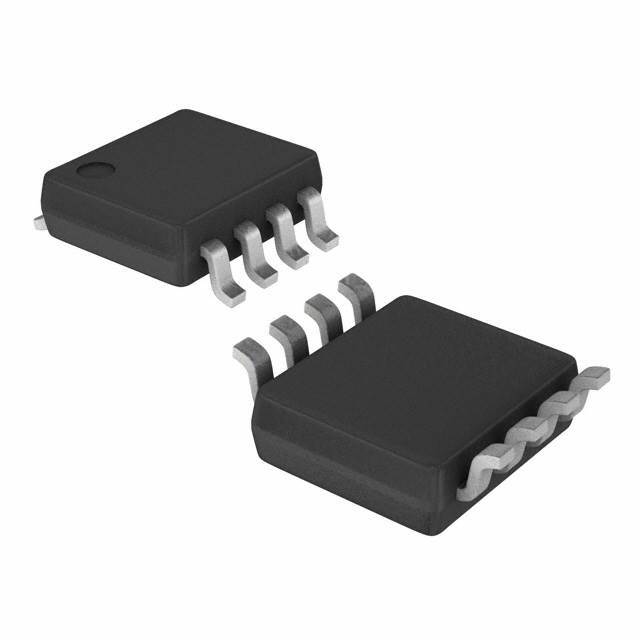

Koffer/Paket US8
Zustand der Lagerung Dry storage cabinet & Humidity protection package
Win Source Teilenummer 030380-SN74LVC2T45DCUR
Handelt es sich um ein häufig verwendetes Teil? Yes
Popularität High
Gefälschte Bedrohung auf dem freien Markt 51 pct.
Stand von Angebot und Nachfrage Sufficient
Anwendungsbereich Used in Industrial, RF Communications, Consumer Electronics
Familienname SN74LVC2T45
Einführung Datum July 01, 2003
ECCN EAR99
Herkunftsland Japan
Halogenfrei Compliant
Geschätztes EOL-Datum 2028
Ultra Librarian 3D-Modell Ultra Librarian SN74LVC2T45DCUR CAD-Modell

Beschreibung

The SN74LVC2T45DCUR is a high-quality, dual-bit, dual-supply, bus transceiver from the highly reputable Texas Instruments. This sophisticated device is designed with auto-direction sensing technology, which allows it to provide seamless communication and data transfer between different bus systems or domains. It is engineered to deliver optimal performance, even in the most demanding technological environments.

One of the major features of the SN74LVC2T45DCUR is its ability to operate from a 1.65-V to 5.5-V VCC supply. It is capable of handling signal amplitude levels from 1.2-V to 3.3-V or 2.5-V to 5.5-V, making it highly versatile and adaptable to a wide variety of applications. This device also boasts of a maximum data rate of 420 Mbps, ensuring fast and efficient data transfer.

Another impressive attribute of the SN74LVC2T45DCUR is its low power consumption. This device is designed to consume minimal power, making it an excellent choice for applications where energy efficiency is a priority. Additionally, it is equipped with a DIR pin that enables the device to function in a direction control mode, thereby further enhancing its performance.

The SN74LVC2T45DCUR is also known for its robust construction and high durability. It comes in an ultra-small DSBGA package (YEA), which not only saves space but also enhances the device's resistance to adverse conditions. This makes it a reliable choice for various industrial, commercial, and even residential applications.

In conclusion, the SN74LVC2T45DCUR from Texas Instruments is a top-tier, dual-bit, dual-supply, bus transceiver that offers a perfect blend of versatility, performance, and durability. Its ability to handle different voltage levels, along with its high data rate and low power consumption, make it an ideal choice for any application that requires efficient and reliable data transfer.
