Product Overview: TCA9554APWR from Texas Instruments

The TCA9554APWR is a sophisticated integrated circuit developed by the renowned semiconductor company, Texas Instruments. It is part of their extensive range of I/O expanders, specifically designed to enhance the I/O capabilities of microcontrollers and microprocessors in a wide array of applications. This particular model is a Low-Voltage 8-Bit I2C and SMBus Low-Power I/O Expander with Interrupt Output and Configuration Registers, which is a testament to its versatility and high functionality.

The device operates over a power supply range of 1.65 V to 5.5 V, which allows for use in systems with varying voltage requirements, ensuring compatibility with both 3.3 V and 5 V logic levels. The TCA9554APWR provides 8-bit parallel input/output port expansion, which is particularly beneficial for applications with limited I/O pins available. This makes it an ideal solution for extending the I/O capabilities without the need for additional microcontrollers, saving on both space and cost.

One of the key features of the TCA9554APWR is its I2C and SMBus interface support, which includes both 100 kHz (Standard-mode) and 400 kHz (Fast-mode) clock frequencies. This interface allows for easy serial communication with the main processor, making it straightforward to interface with a wide range of devices. Additionally, the interrupt output can be configured to reflect the input status, which is extremely useful for prompt system responses to input changes without the need to continuously poll the expander.

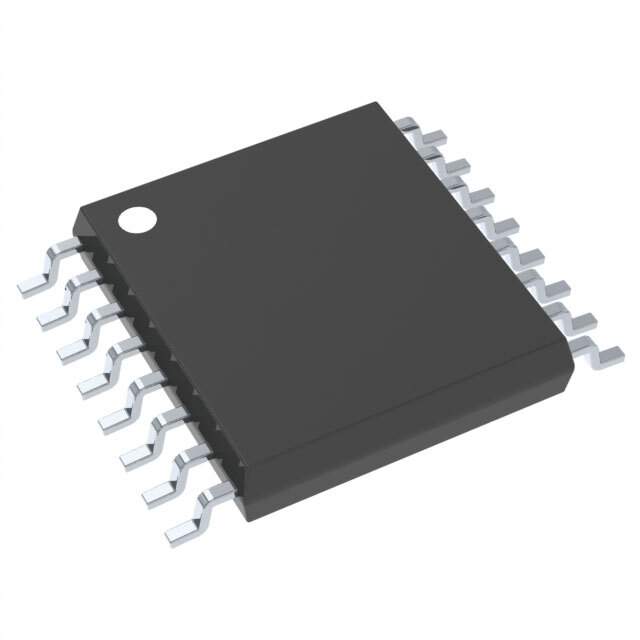

The device is available in a TSSOP (Thin Shrink Small Outline Package) with 16 pins, under the part number TCA9554APWR. The package is designed for space-saving on the PCB and is well-suited for automated assembly processes, making it a popular choice for mass-produced electronic devices.

Overall, the TCA9554APWR from Texas Instruments is a reliable and efficient solution for expanding I/O ports in a variety of electronic systems, from consumer electronics to industrial automation, offering designers a flexible and cost-effective option for managing I/O requirements.
