The TPS22810DBVR is a high-performance, single-channel load switch designed by Texas Instruments, a global semiconductor company known for its state-of-the-art electronic components. This compact and efficient device is an integral part of power management solutions, offering a simple and reliable means to control power distribution in various electronic systems.

Key Features

• Input Voltage Range: The TPS22810DBVR operates over an input voltage range of 1.5V to 5.5V, making it versatile for use in a wide array of applications from battery-powered devices to industrial systems.
• Low On-Resistance: With an ultra-low on-resistance (R_ON) of just 28mΩ at 5V, this load switch ensures minimal voltage drop and power loss, enhancing overall system efficiency.
• Current Limiting: The device features an adjustable current limit up to 2A, providing protection against overcurrent conditions which can be critical for system reliability.
• Quick Output Discharge: An integrated quick output discharge transistor ensures a rapid discharge of the output capacitance when the switch is turned off, which is essential for sensitive applications where a fast power-off is necessary.
• Controlled Slew Rate: The TPS22810DBVR offers a controlled slew rate, reducing inrush current and mitigating the potential for voltage droop on the power supply rail.

Applications

The TPS22810DBVR is suitable for a variety of applications, including but not limited to:

• Portable and battery-powered electronics
• Smartphones and tablets
• Wearable technology
• Power management modules
• Industrial and automation systems

Package and Quality

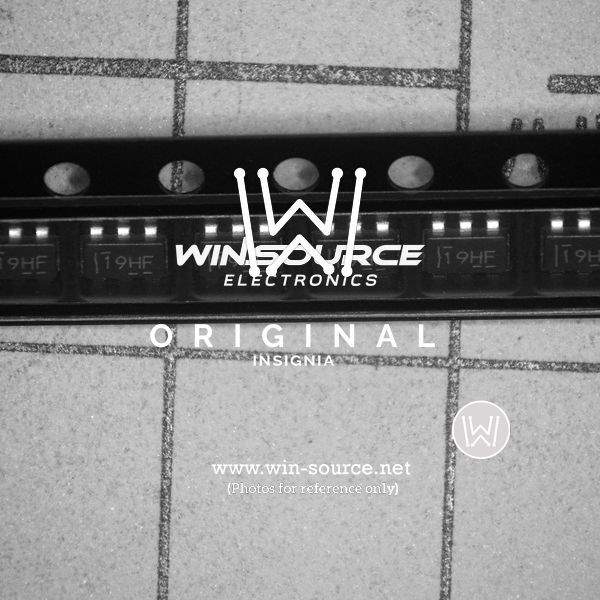

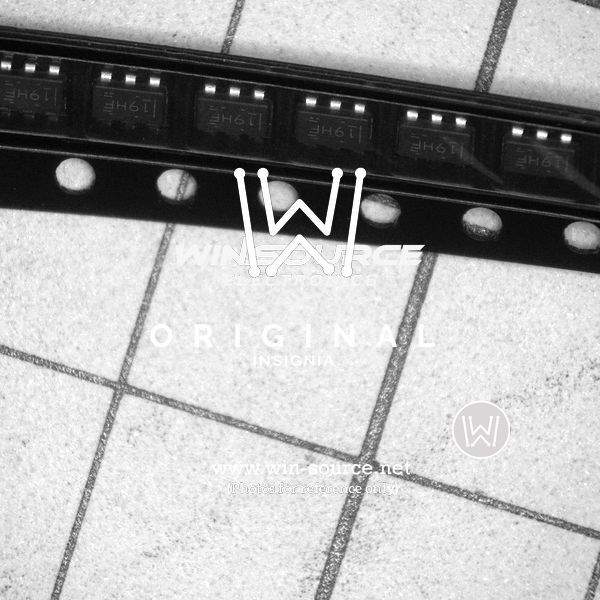

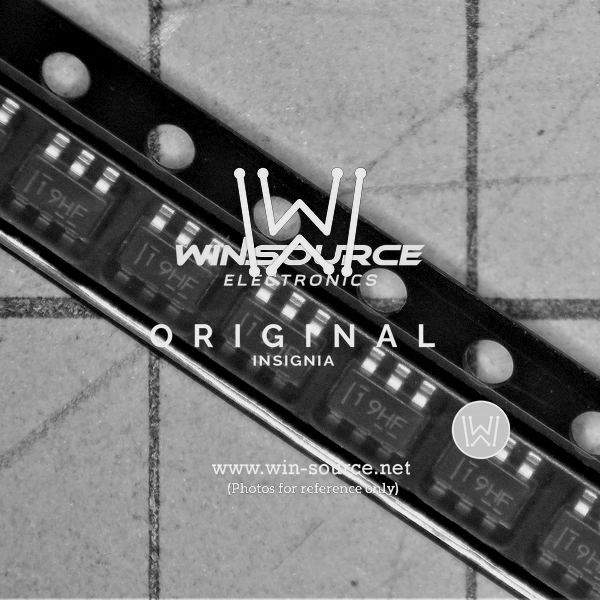

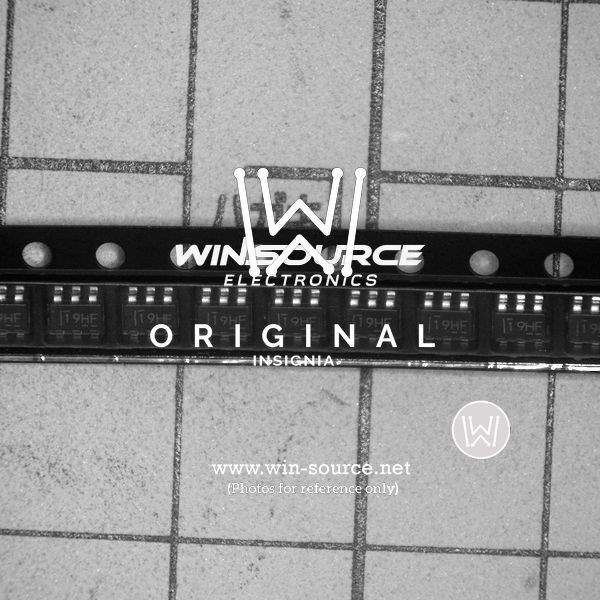

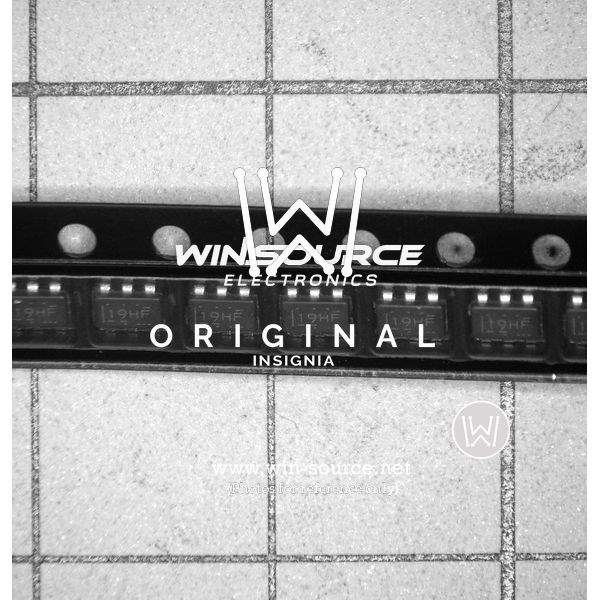

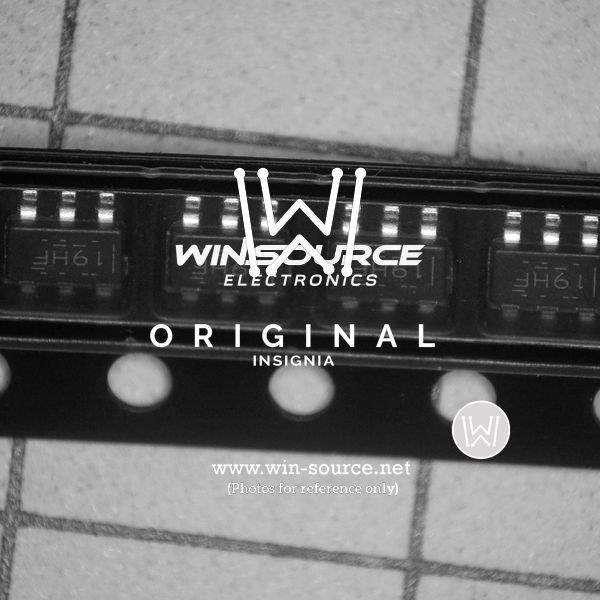

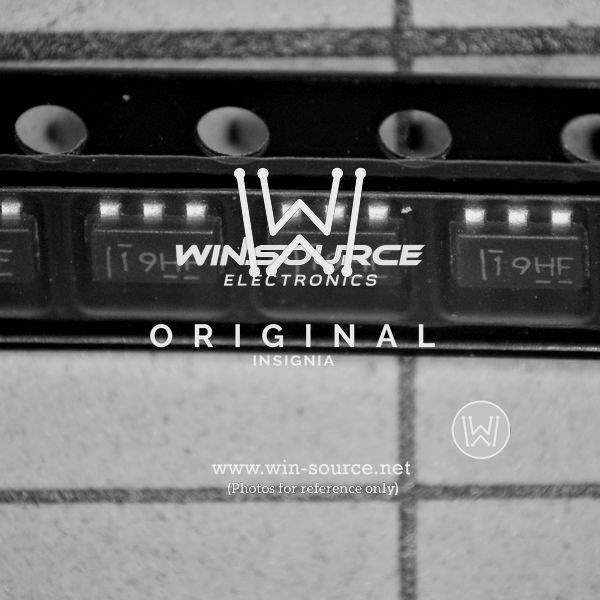

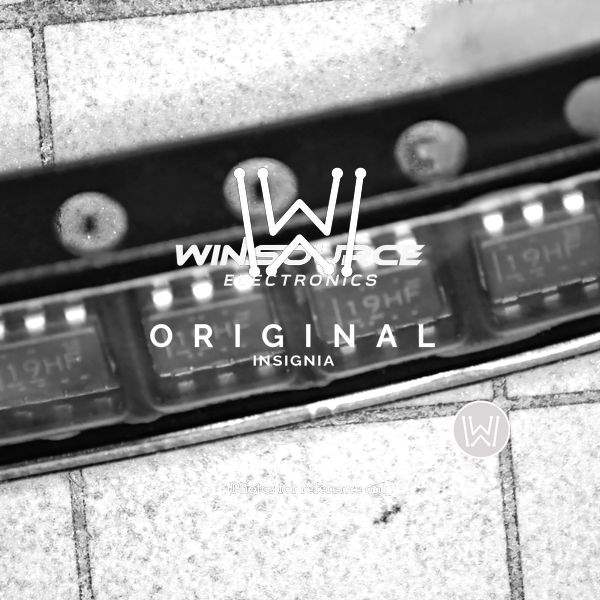

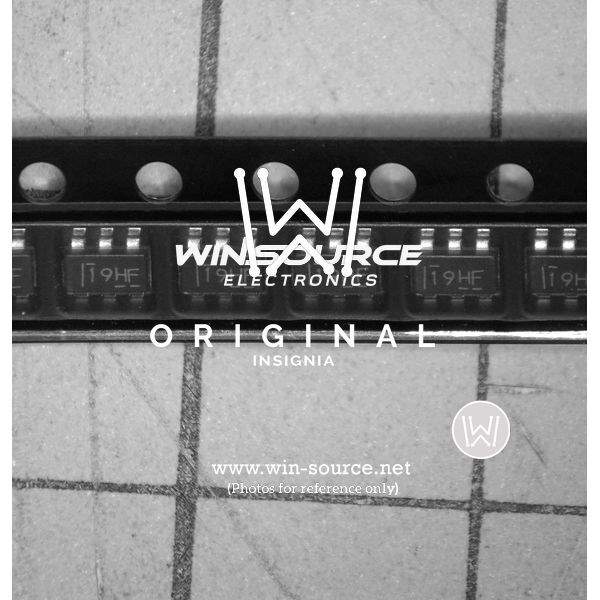

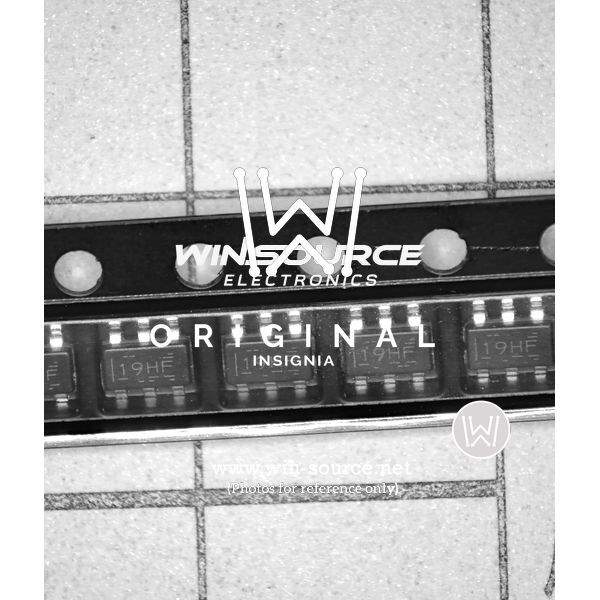

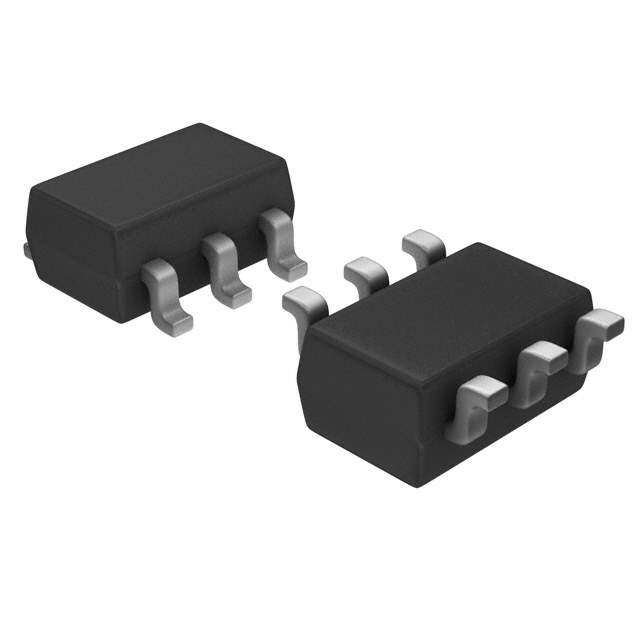

Encased in a compact 6-pin SOT-23 package, designated as DBVR, the TPS22810DBVR is designed for space-constrained applications. Texas Instruments' commitment to quality ensures that this load switch meets rigorous industry standards for performance and reliability, making it a trusted choice for engineers and designers across various sectors.
