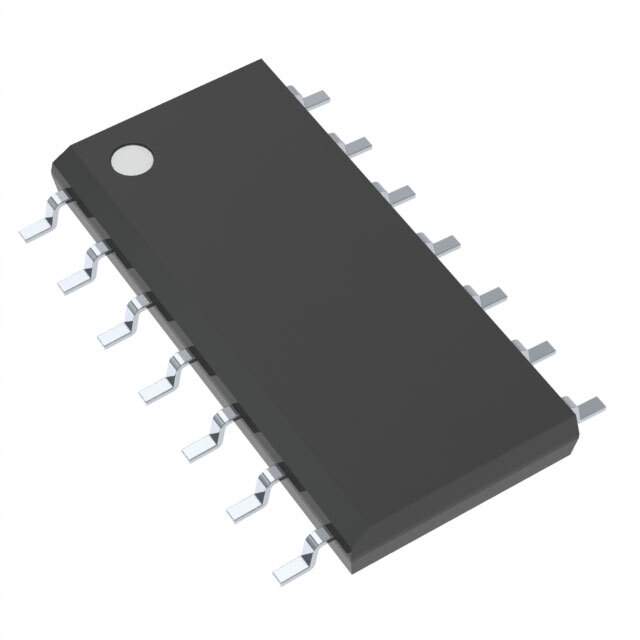

The XTR105UA is a state-of-the-art integrated circuit from Texas Instruments, designed to offer a complete solution for the conditioning and transmission of industrial sensor signals. This precision two-wire transmitter integrates a low noise instrumentation amplifier (INA), a voltage-controlled output current source, and a precision voltage reference.

Key Features

• Integrated 4-20mA Current Transmitter: The XTR105UA provides a current output that ranges from 4mA to 20mA, which is the industry standard for signal transmission in process control applications. This ensures compatibility with a wide array of industrial control systems and devices.
• Low Offset Voltage: The device boasts a low offset voltage, which significantly reduces measurement error and improves overall accuracy in signal conditioning.
• High Input Impedance: The high input impedance makes the XTR105UA suitable for use with a variety of sensors, including those with high output impedance.
• Built-in Voltage Reference: A precise, low-drift voltage reference enhances the stability and accuracy of the sensor signal, ensuring reliable performance over a range of operating conditions.
• Flexible Sensor Excitation: The XTR105UA offers sensor excitation with programmable current sources, allowing it to accommodate a wide range of sensor types and configurations.
• Temperature Compensation: The device includes temperature compensation features, which are essential for maintaining accuracy in environments with fluctuating temperatures.

Applications

The XTR105UA is ideal for a variety of industrial and process control applications. It is particularly well-suited for:

• Transmitting sensor data over long distances
• Process control systems
• Factory automation
• Instrumentation
• PLC system interfaces

Technical Specifications

• Supply Voltage: 7.5V to 36V
• Operating Temperature Range: -40°C to +85°C
• Package: 8-pin SOIC

With its robust feature set and proven reliability, the XTR105UA from Texas Instruments is the go-to choice for professionals seeking an efficient and precise way to manage and transmit sensor data within their industrial systems.
